High-Resolution Small-Field and Large Field Captures

The PRIMOS Clinical Research System is ideal for the investigation and documentation of skin microstructure and wrinkles. This 3D systems may be used to quantitatively measure skin roughness, wrinkles and nodule formations, and track changes over time.

PRIMOS CR

Three dimensional measurement, recording and evaluation of the surface structure of skin provides a significant step forward in supporting studies for medical and cosmetic treatments.

Simple

3D analysis tools are simple to use but provide robust metrics from uncomplicated analysis tools

Flexible

Measurement of fine lines, wrinkles, crow's feet, skin smoothness, wounds, and scars. Hand-held or mounted

Fast

Live Heightmap captures save directly into the subject’s chart. Rapid streaming capture with live-view evaluation helps data acquisition run efficiently.
PPrimos CR showing skin microstructure and wrinkles

Available in Small and Large Field Views

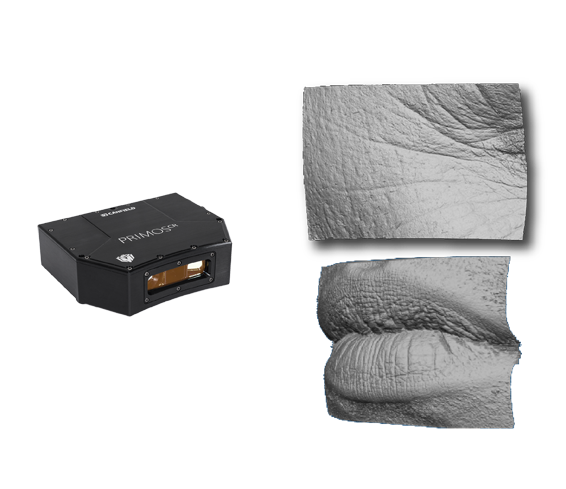

Primos CR small field capture for capturing the smallest details

Small Field Capture

Tighter field of view for capturing the smallest details in the highest resolution.

Best used for

  • Crow's Feet Wrinkles
  • Peri Orbital Fine Lines
  • Scar and Stretchmark Texture
Primos CR large field capture for capturing more features of a person's face

Large Field Capture

Capture more in each image with larger scale views.

Best used for

  • Eye Bags
  • Lip Fullness/Smoothness
  • Cellulite
  • Keloid and Hypertrophic Scar

Quantitative Analysis

Quickly quantify the microstructure of the skin with adjustable depth and volume measurement tools. Automatically match baseline analysis with follow-up captures.

Primos CR Quantitative Analysis Graph

Quickly quantify microstructure of the skin with adjustable depth and volume measurement tools. Automatically match baseline analysis with follow-up captures.

Dramatic 3D mapping visuals and quantitative height and volume measurements strengthen claims.

Primos CR's 3D mapping that visualizes height and volume of a person's skin in color

High Quality, Dense 3D Geometry Mesh in a Single Capture


Color Height Maps

Color Height Maps

Visually show the topology of complex 3D surfaces.

Measurement Tools

Measurement Tools

Quickly quantify the microstructure of the skin with adjustable depths and volume measurement tools.


Quantitative Analysis

Quantitative Analysis

Automatically match baseline analysis with follow-up captures

Visual Analysis

Visual Analysis

Dramatic 3D mapping visuals and quantitative height and volume measurements strengthen claims.


Tunable Resolution

Tunable Resolution

Capture just the right amount of detail when you need it

VECTRA Integration

VECTRA Integration

Rapidly capture subject images with VECTRA's advanced tools such as MatchPose® overlay, and automatically save with VECTRA patient charts


Canfield MatchPose® Overlay

Canfield MatchPose® Overlay

Perfectly align images to one another during capture with advanced MatchPose® technology.

Canfield Care® Available

Canfield Care® Available

Unlimited technical support, hardware warranty, training webinars, software upgrades and ViewMyConsult® access.

Tech Specs

Specifications

Small Field

Field of View
  • 45 x 30 x 25 mm
  • Adjustable Resolution (X, Y, Z)
  • 20 x 20 x 2 μm to 100 x 100 x 2 μm
Dimensions
  • 49 x 136 x170 mm
  • 1.92 x 5.35 x 6.69 in
Weight
  • 1.52 kg
  • 3.35 lbs

Large Field

Field of View
  • 100 x 70 mm to 150 x 200 mm
  • Adjustable Resolution (X, Y, Z)
  • 50 x 50 x 5 μm to 100 x 100 x 5 μm
Dimensions
  • 49 x 146 x 190 mm
  • 1.9 x 5.7 x 7.4 in
Weight
  • 1.70 kg
  • 3.74 lbs

Requirements

Recommended Computer System
  • Operating System - Windows 10 or 11 Professional Edition 64 bit
  • Processor - Quad Core Intel i7
  • Graphics Card - NVidia Quadro with 4GB of GDDR5
  • RAM
    • 16GB recommended for capture
    • 64GB recommended for analysis
  • Available Network port needed for connecting sensor to PC

Support

LMI Support
  • 1-year limited warranty from manufacturer, LMI, including support & upgrades
  • Includes round trip shipping in US
  • Includes software feature improvements and enhancements

Warranty

PRIMOS
  • 1-year limited warranty from manufacturer, LMI, including support
  • Includes round trip shipping in US
Dell Laptop Computer (optional through Canfield)
  • 3-year limited manufacturer warranty, including on-site, next day service from Dell, in the US
